Add Hub Links to Brightspace / Connect Provider
From the Brightspace homepage, choose the Admin Tools icon.
Choose Manage Extensibility.
Choose the LTI Advantage tab.
Choose Register Tool.
Select Standard.

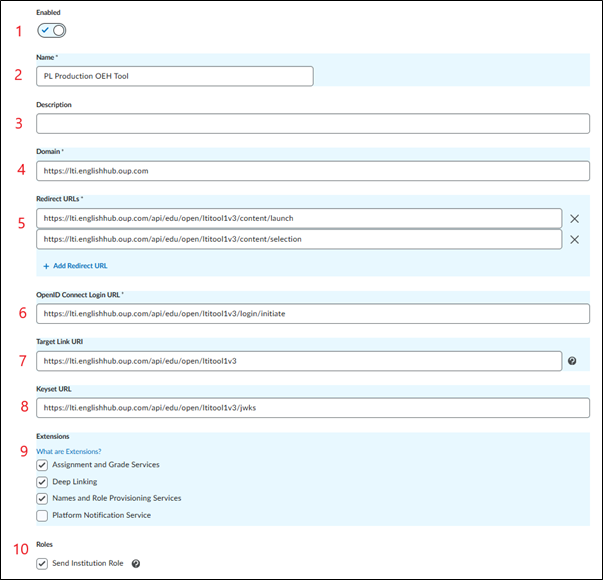

Add the settings and URLs as below.
- Enabled: Toggle on
- Name: Add a name for your tool.
- Description: (Optional) Add a description.
- Domain: Add the URL
https://lti.englishhub.oup.com/ - Redirect URLs: Add the URLs
https://lti.englishhub.oup.com/api/edu/open/ltitool1v3/content/launch
https://lti.englishhub.oup.com/api/edu/open/ltitool1v3/content/selection - OpenID Connect Login URL: Add the URL
https://lti.englishhub.oup.com/api/edu/open/ltitool1v3/login/initiate - Target Link URI: Add the URL
https://lti.englishhub.oup.com/api/edu/open/ltitool1v3 - Keyset URL: Add the URL
https://lti.englishhub.oup.com/api/edu/open/ltitool1v3/jwks - Extensions: Check all boxes
- Roles: Check box
Choose Register
Brightspace will generate registration details that can be added to the Oxford English Hub organization later.
Create Deployment / Choose Course
Enabling your LMS to send student and teacher roles, names and email information to OUP’s platforms allows them to be identified correctly in the user account and grade reporting areas.
By not selecting these options, student and teacher IDs will be anonymized in the OUP platforms, meaning they cannot be identified. If you do not choose these options, they can be enabled later.
Choose View Deployments.
Choose New Deployment.
Add a name for the deployment.
Extensions
Check all
Security settings
Check all except Anonymous.
Configuration setting
Choose Open as External Resource.
Do not choose both Grades created by LTI will be included in Final Grade and Auto Create Grade Items together as this will send conflicting information.
Choose Add Org Units.
Search for your course.
Check the box next to the name of your course.
Choose Add.
Brightspace will generate a deployment ID. This will be added to the Oxford English Hub organization later.
Create Tool Link / Create Link to Content Selection Menu
Choose View links.

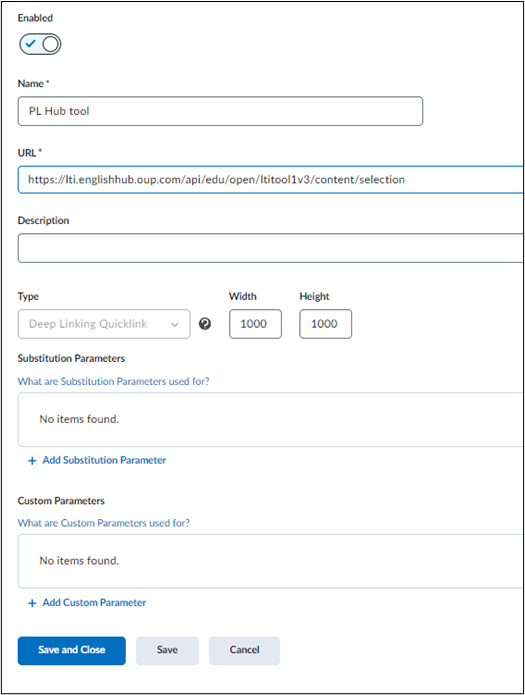

Choose New link.
Enabled
Toggle on
URL
Add the URL
https://lti.englishhub.oup.com/api/edu/open/ltitool1v3/content/selection
Type
Choose Deep Linking Quicklink.
Choose Save and close.
Add Registration Details and Deployment ID from Brightspace to Hub

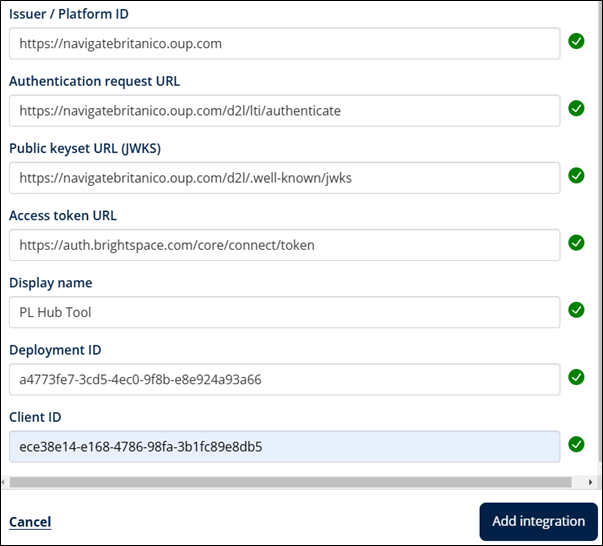

Open the tool you have created in Brightspace, copy the Brightspace registration details, and add them to the Hub organization.
Issuer / Platform ID
Add the Issuer URL.
Authentication Request URL
Add the OpenID Connect Authentication Endpoint URL.
Public Keyset URL (JWKS)
Add the Brightspace keyset URL.
Access Token URL
Add the Brightspace OAuth2 Access Token URL.
Display name
Add the name of the tool from Brightspace.
Deployment ID
Choose View Deployments in the Brightspace tool.
Open the deployment.
Copy the Deployment ID.
Add to Deployment ID in Hub.
Client ID
Add the Client ID from the Brightspace registration details.
Choose Add integration.
Assign Products
Within your Brightspace course, from the course Homepage choose Content then + New Unit.
Give the unit a name and choose Save and close.
Choose Add Existing.
Choose More.
Choose the tool link you created earlier.
The OUP content selection menu will open.

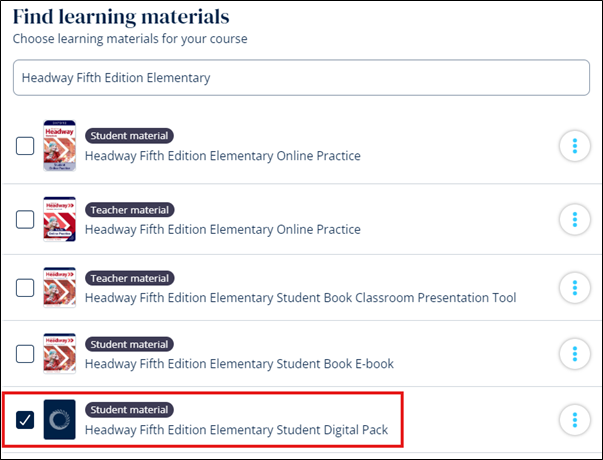

Search for the OUP product you wish to assign to your LMS course. Using the product ISBN will help you find the right product without mixing it up with others.
Check the box next to the product or pack title and choose Next.

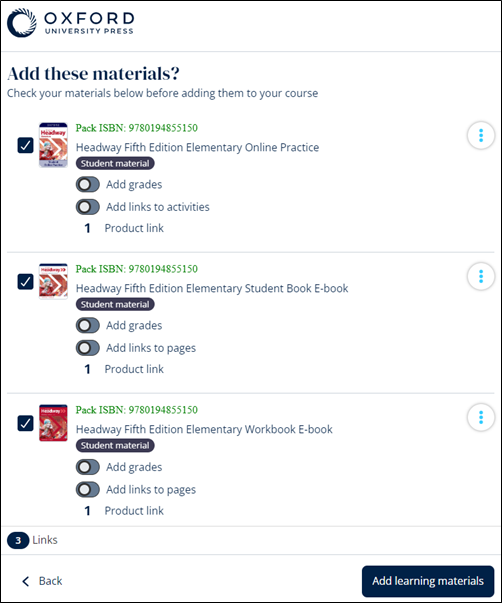

Confirm that the product(s) are correct and choose Add learning materials.
Refer to the Help section for guidance on synchronizing grades and creating deep links to activities or pages if you need these features.
The product launch links will display in your course.
Launch Products
Students will see the product launch link in the Canvas course when you have published the module.
To launch a product yourself as a teacher or administrator, it must be a teacher product and not a student product.
The product will launch in a new tab.
The student should enter their access code and choose Redeem.
The product will launch.
If license credits for the product are not assigned to the Hub organization, when a student or teacher first launches a product, they will see a field to enter their product access code.
If license credits have been assigned to the Hub organization, then the access code prompt will not appear, and the product will launch.
The student should check the box agreeing to the Terms and Conditions and choose Continue.
The student will then be able to use the product.
Assign Oxford English Hub

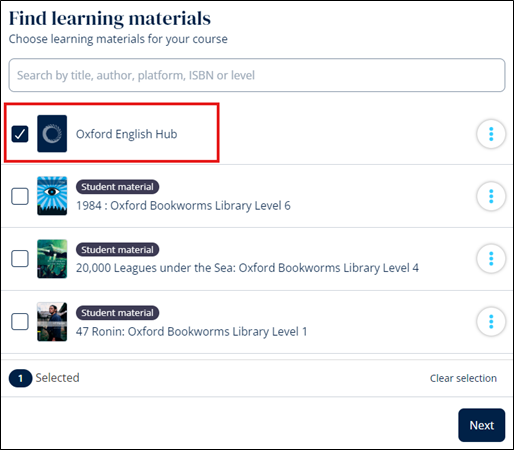

In the content selection menu, choose Oxford English Hub to create a launch link in your course.
Choose Next.

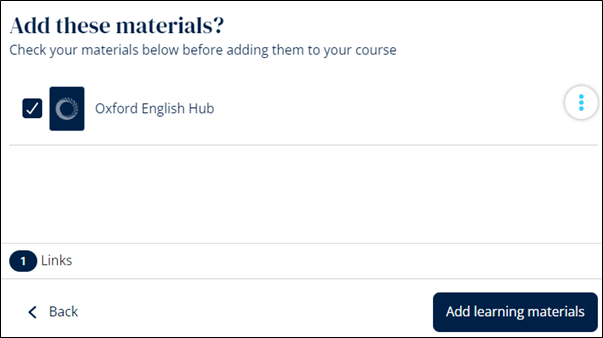

Choose Add learning materials.
In Brightspace choose Save and return to course.
A launch link for Oxford English Hub will be created in your LMS course.

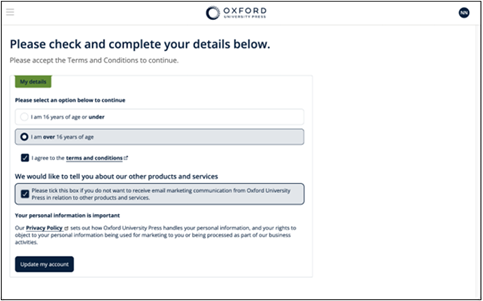

When a student chooses the link, Oxford English Hub will open and they will be presented with the Terms and Conditions.
They should make their age choice and agree to the Terms and Conditions.
Then choose Update my account.
The student’s account will be created in Oxford English Hub.
They can choose Get started to access Oxford English Hub.
Within Oxford English Hub students and teachers will be able to access the course content they are entitled to, such as course Resources and Assessment material, depending on their product.
They will also be able to access e-book, Online Practice, and Assessment gradebooks.
Important:
If a student has not redeemed a license for a product, they will not see any course material in Oxford English Hub.
If a student has already redeemed a pack license, they will see the pack course materials available within Oxford English Hub.
If a student has redeemed an Online Practice license, they will can access course resources in Oxford English Hub.
Students and teachers cannot launch Online Practice, e-books, or Class Presentation Tools from Oxford English Hub. They must use their own launch link from the LMS.
Students and teachers can only access Oxford English Hub from their LMS. They cannot access their account or course material by signing in to Oxford English Hub directly.
